TRAILING SHIELD · p.58 – 62
Another layer of protection for the weld

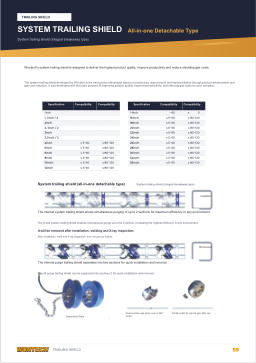

System type · assembly module type · post-weld type · C-curve · oval · custom

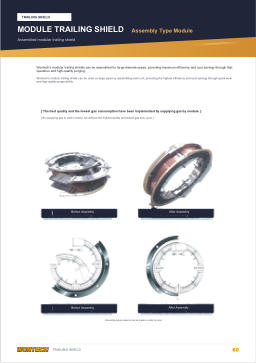

MODULE TYPE
SHIELDAssembly Type Module
Modular trailing shield

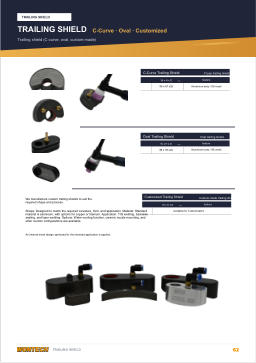

C-CURVE
C-curve trailing shield
96 × 67 × 25mmW × H × D · aluminium body / SS mesh
OVAL
Oval trailing shield
86 × 39 × 24mmW × H × D · aluminium body / SS mesh
Custom-made: designed to the required curvature, shape and application. Aluminium as standard, copper or titanium optional; water cooling and ceramic nozzle mounting available (catalogue p.62).
CATALOGUE PAGES
p.58 – p.62
Catalogue pages — click to enlarge
