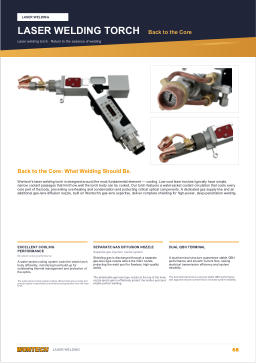

BACK TO THE CORE · p.68 – 69
Back to the core: cooling first
Water jacket cools the whole body · separate gas-lens nozzle · dual QBH terminals
WT-LRS15
WATERHand-held Laser Welding Torch
Body water-cooled · application range 2000W
WT-LRS30
WATERBody + nozzle water-cooled · application range 3000W
Common specifications
Protective lens D18 × T2mm
Collimating lens D16 F50mm
Vertical focus range ±10mm
Focusing lens D20 F150mm
Collimating lens D16 F50mm
Vertical focus range ±10mm
Focusing lens D20 F150mm

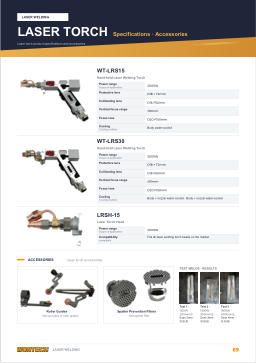

Specifications: catalogue p.69. The LRSH-15 laser torch head (application range 2000W), guide rollers and anti-spatter filters are on the same page.

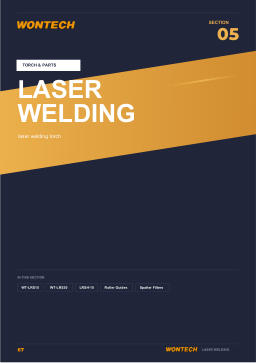

CATALOGUE PAGES
p.67 – p.69
Catalogue pages — click to enlarge
